 Omega – specialist products

Omega specialist and bespoke products form a highly diverse collection of bespoke heating and cooling products developed for specific customers and applications. Many of these unique products have been developed through partnering arrangements or through close collaboration with customers, and therefore in many cases the details remain confidential between Linton Services and our clients.  We have considerable experience of product design and product development associated with a wide variety of applications across a broad spectrum of clients, including Government and military procurement bodies. We enjoy working with demanding and highly sophisticated partner companies where results and performance are closely scrutinised and rewarded. We are happy to work on exclusive design and development projects where the IPR is restricted. We are also willing to offer product and market exclusivity or licensing arrangements with our clients and their associated partners - especially in instances where overseas manufacturing provides commercial advantages.  Please use the contact us facility if you have a specific product or project you would like to discuss with us. Ω  Omega BPU – High capacity pumping stations

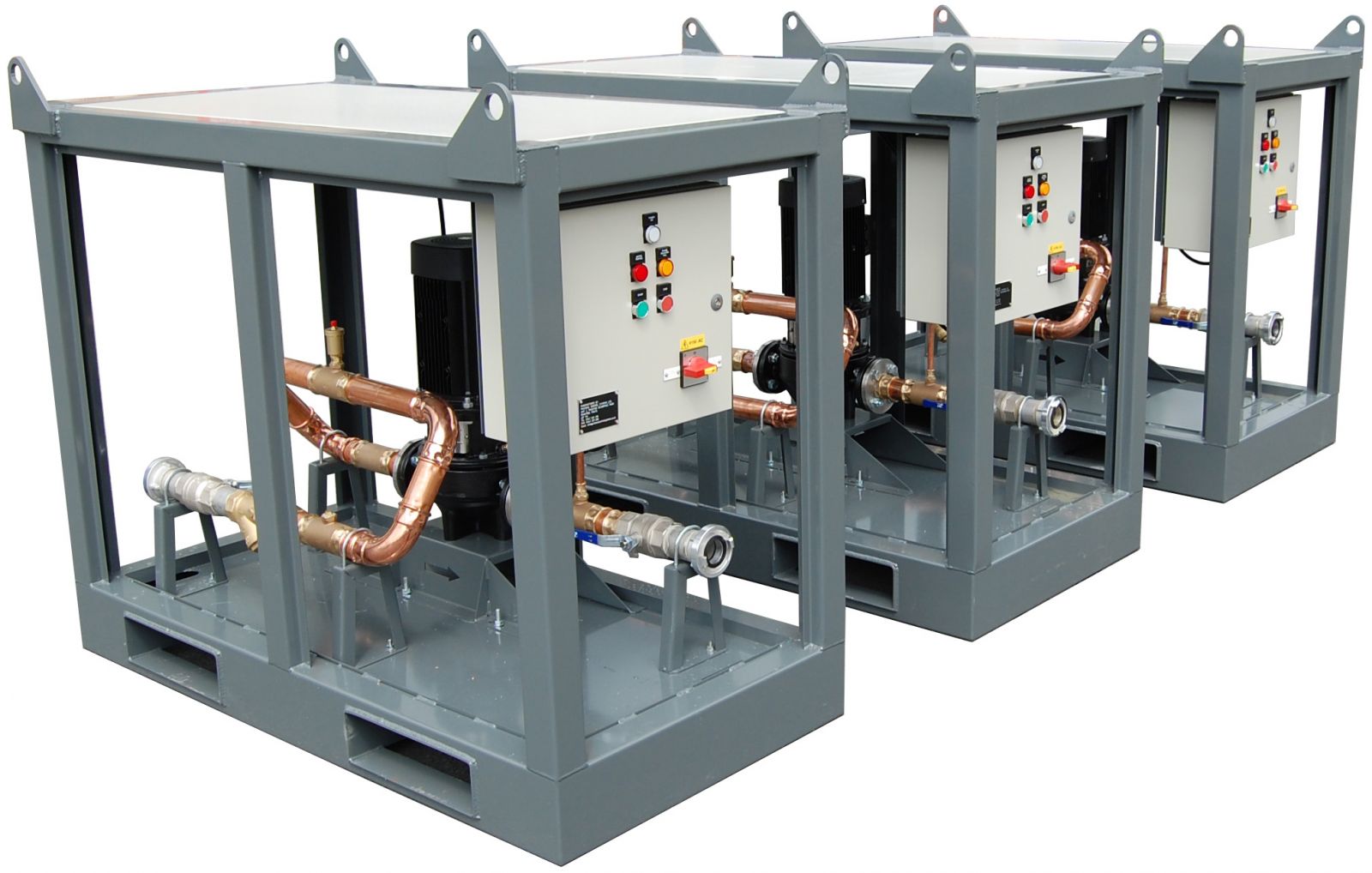

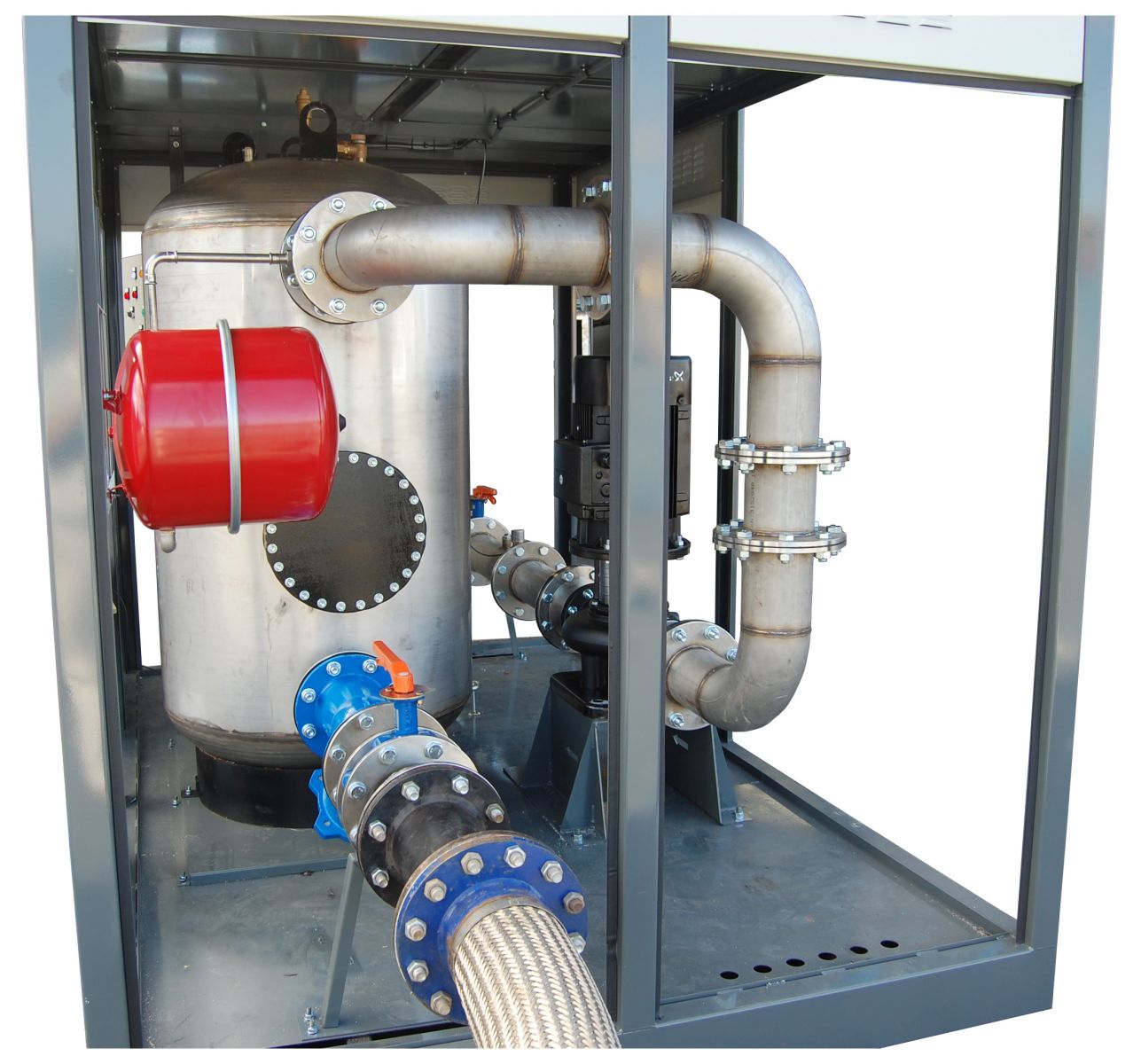

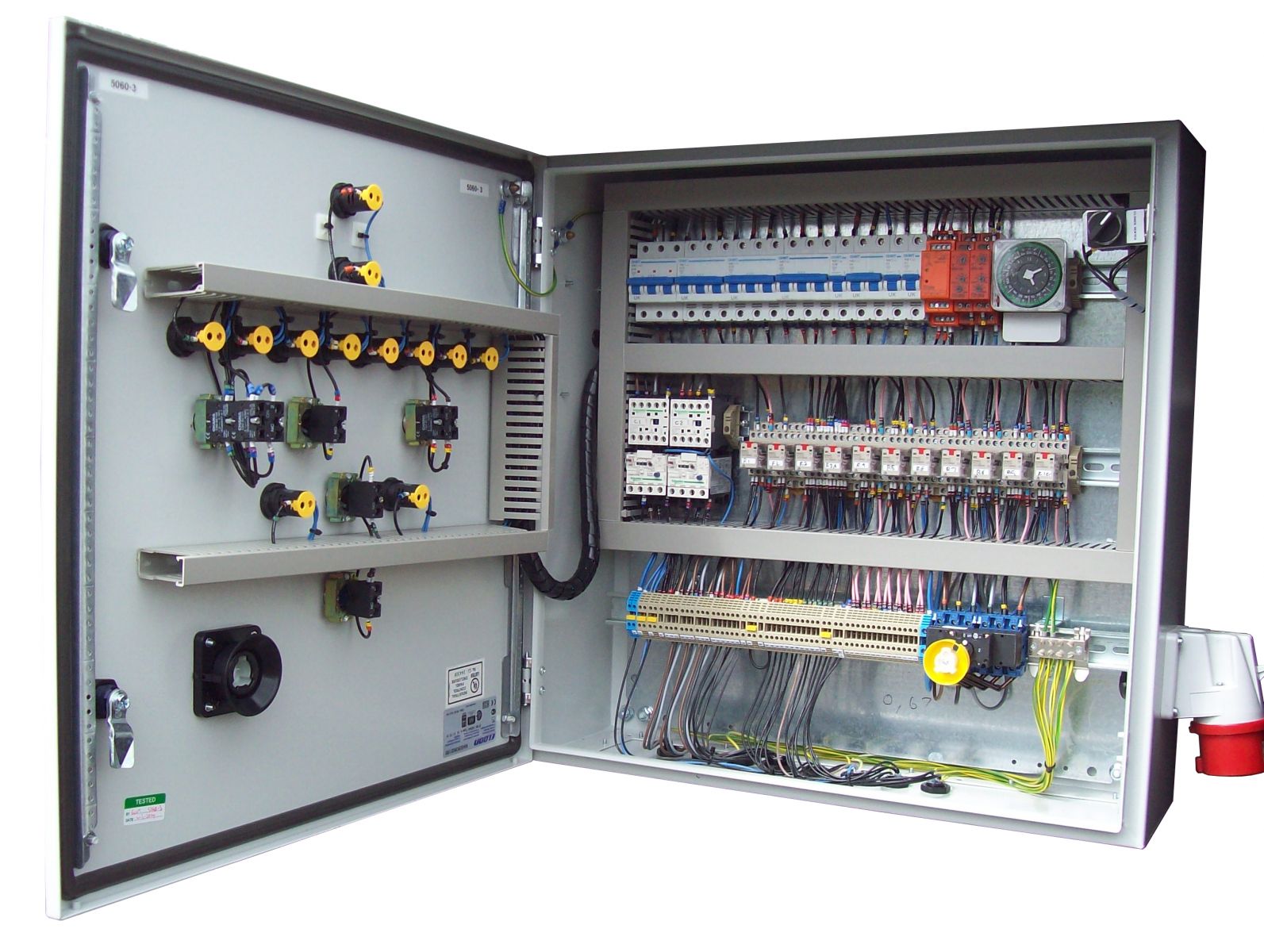

Omega BPU pumping stations have been designed specifically for use with LPHW boiler houses and chilled water air conditioning units. The pumping stations have been developed for use in applications where the heating or cooling media requires additional pump capacity in order to overcome adverse site conditions, such as when the required head is very high or the pipe run between the appliance and other plant is very long. OMEGA BPU - High capacity packaged pumping stations   Flow rate Head Pressure Motor Electrical Noise level   litres/sec metres Max Nom Duty Current V-ph-Hz dBA Omega BPU 50 14.4 35 5 bar 3 bar 3 kW 6.3 A 415-3-50 63 Omega BPU 75 13 32.5 5 bar 3 bar 11 kW 20.4 A 415-3-50 65 Omega BPU 100 24 30 5 bar 3 bar 15 kW 26.3 A 415-3-50 66 Omega BPU 150 37 37 5 bar 3 bar 22 kW 38 A 415-3-50 67 Each Omega unit is hand built and the flexibility within the design allows for either an enclosed fully welded frame (including a structural base with four-way FLT points and lifting eyes, and flush fitting twin skin insulated panels), or open skid mounted versions. Controls, connections, and panels can be specified by the customer allowing for greater flexibility.  Typical heating and cooling applications for the Omega Range include the following: construction sites, outdoor events and marquees, temporary storage facilities, warehousing, plant and building refurbishment, process heating and cooling, ship building and refitting, garages, workshops, factories, temporary heating and cooling within industrial and commercial units, agriculture, in theatre military uses, and very many more…

Omega waste oil cabinet heaters have been designed specifically to burn waste oil and for use within automotive applications where special restrictions apply to the design and use of heating equipment. The design includes vapour proof controls and panels, and each model is suitable for use in either free blowing or ducted applications. The range consists of four models with outputs of 41kW, 53kW, 79kW, and 115kW and with air volumes of 0.9m3/s, 1.14m3/s, 1.72m3/s and 2.25m3/s. OMEGA WO - High efficiency indirect fired waste oil cabinet heaters   Duty Air volume Throw Efficiency Electrical Noise level   kW kCal m3/s m % V-ph-Hz dBA Omega WO 40 41 35,260 0.9 24 91 230-1-50 64 Omega WO 50 53 45,580 1.14 27 91 230-1-50 67 Omega WO 80 79 67,940 1.72 31 91 415-3-50 72 Omega WO 115 115 98,900 2.25 34 91 415-3-50 74 A standard range of Omega Cabinet Heaters also exists, these units are intended for use with either clean fuel or with waste oil, and for use in standard warm air heating applications.

Ω

 Omega – specialist products

Omega specialist and bespoke products form a highly diverse collection of bespoke heating and cooling products developed for specific customers and applications. Many of these unique products have been developed through partnering arrangements or through close collaboration with customers, and therefore in many cases the details remain confidential between Linton Services and our clients.  We have considerable experience of product design and product development associated with a wide variety of applications across a broad spectrum of clients, including Government and military procurement bodies. We enjoy working with demanding and highly sophisticated partner companies where results and performance are closely scrutinised and rewarded. We are happy to work on exclusive design and development projects where the IPR is restricted. We are also willing to offer product and market exclusivity or licensing arrangements with our clients and their associated partners - especially in instances where overseas manufacturing provides commercial advantages.  Please use the contact us facility if you have a specific product or project you would like to discuss with us.   Ω  Omega – Associated products and systems

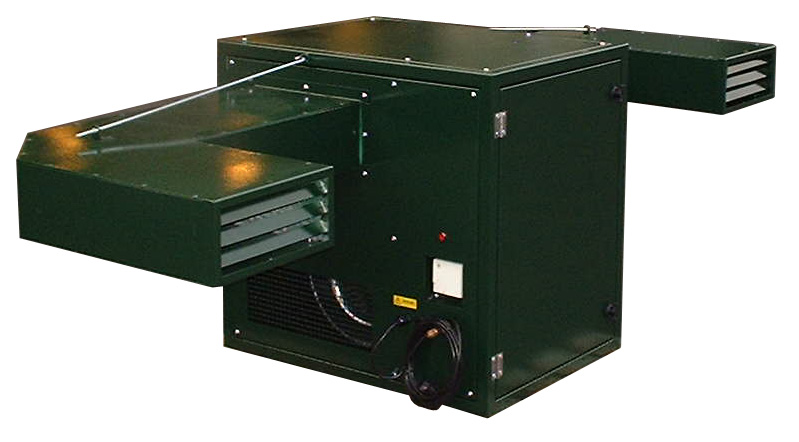

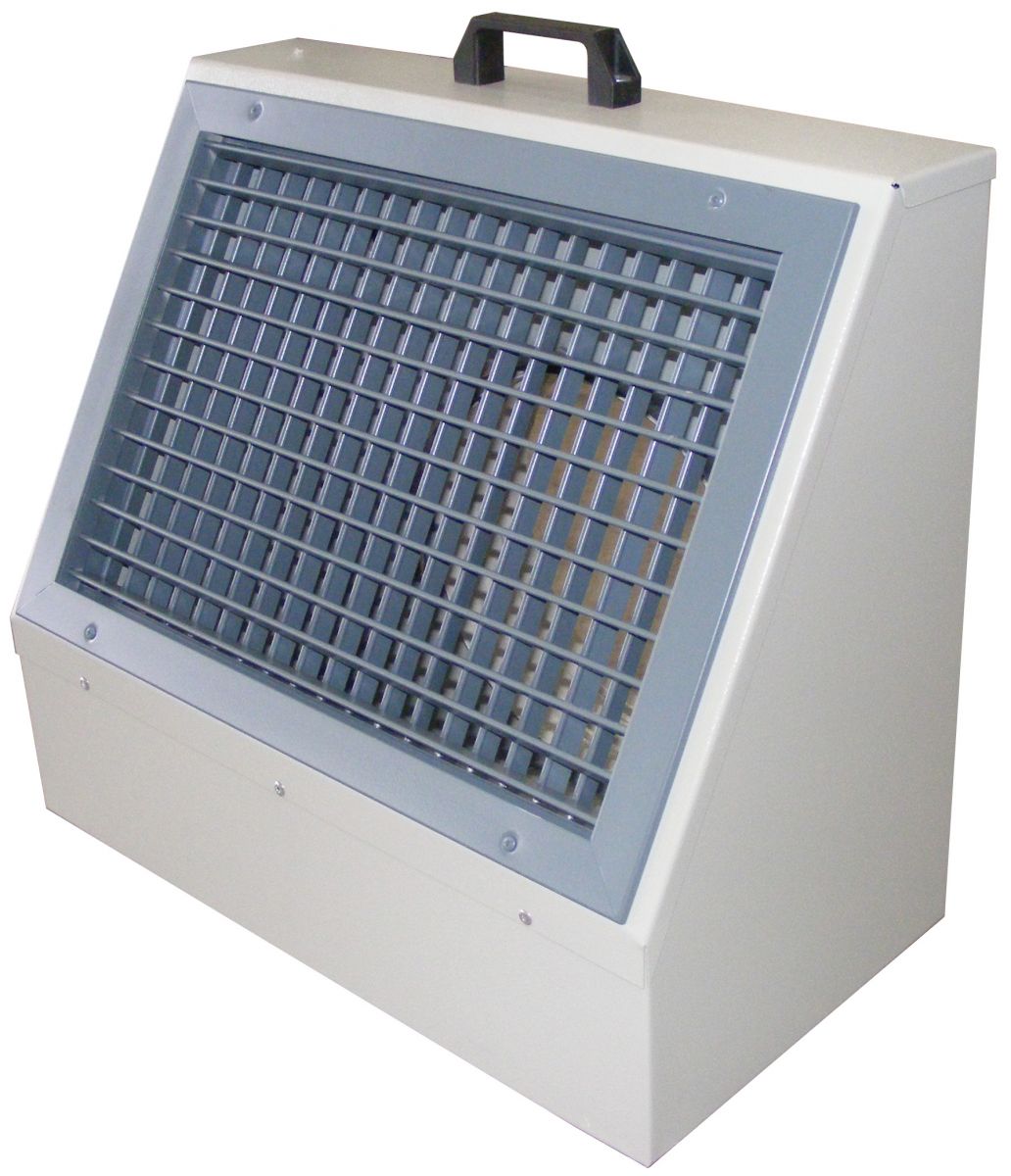

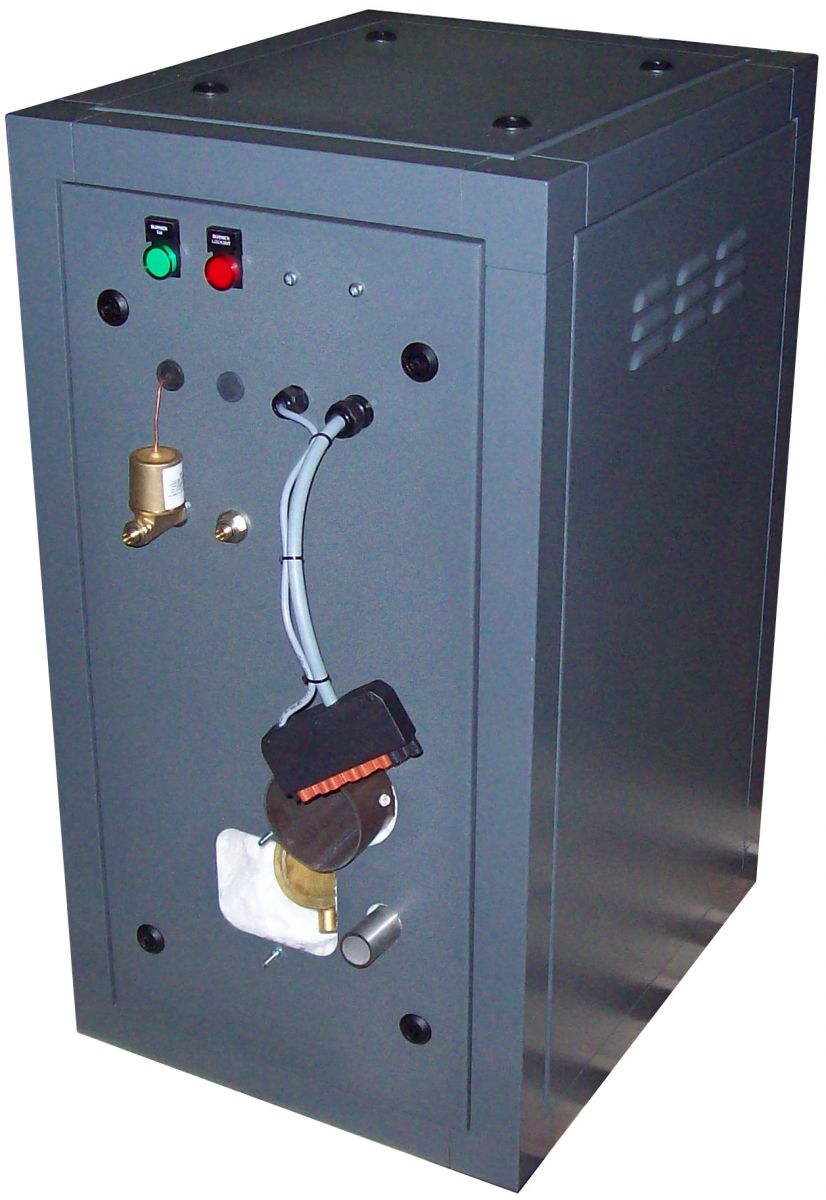

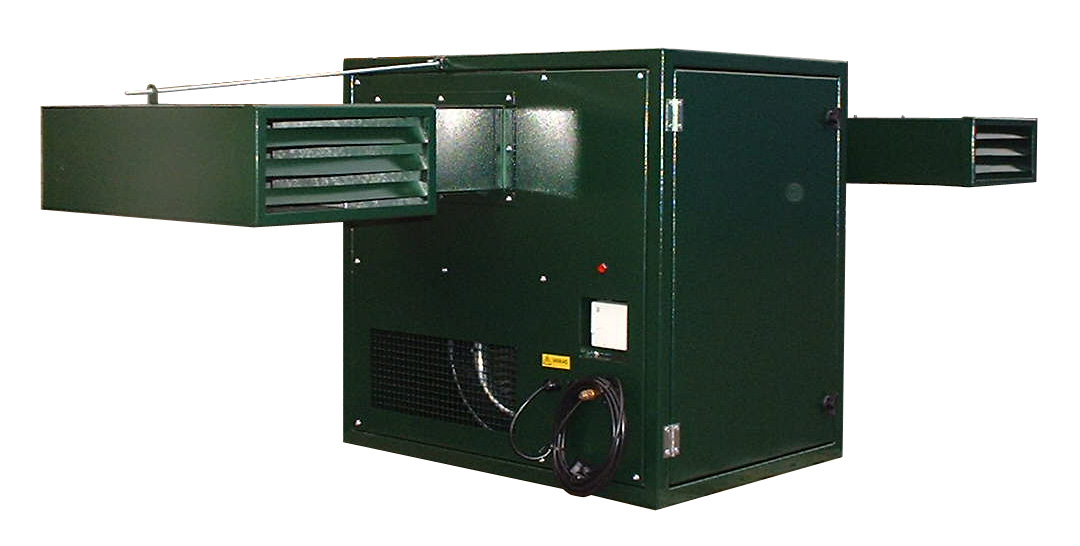

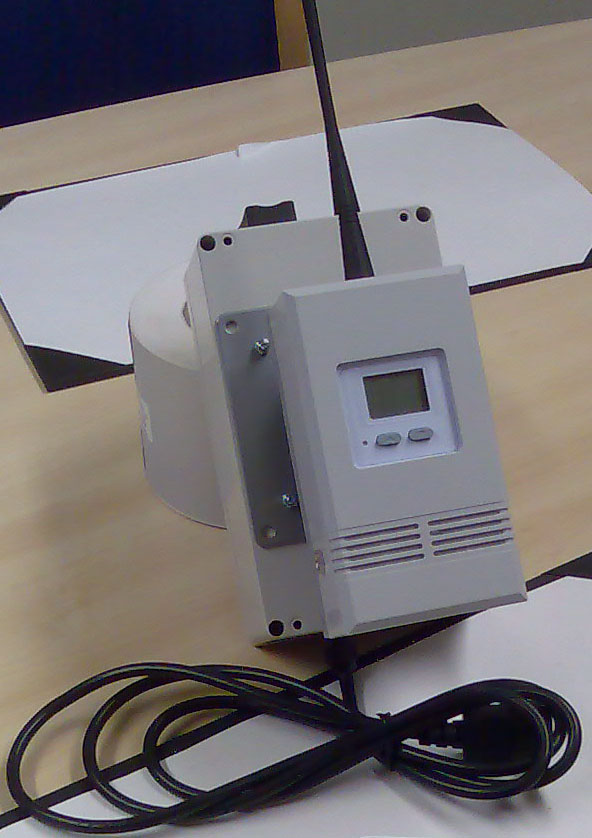

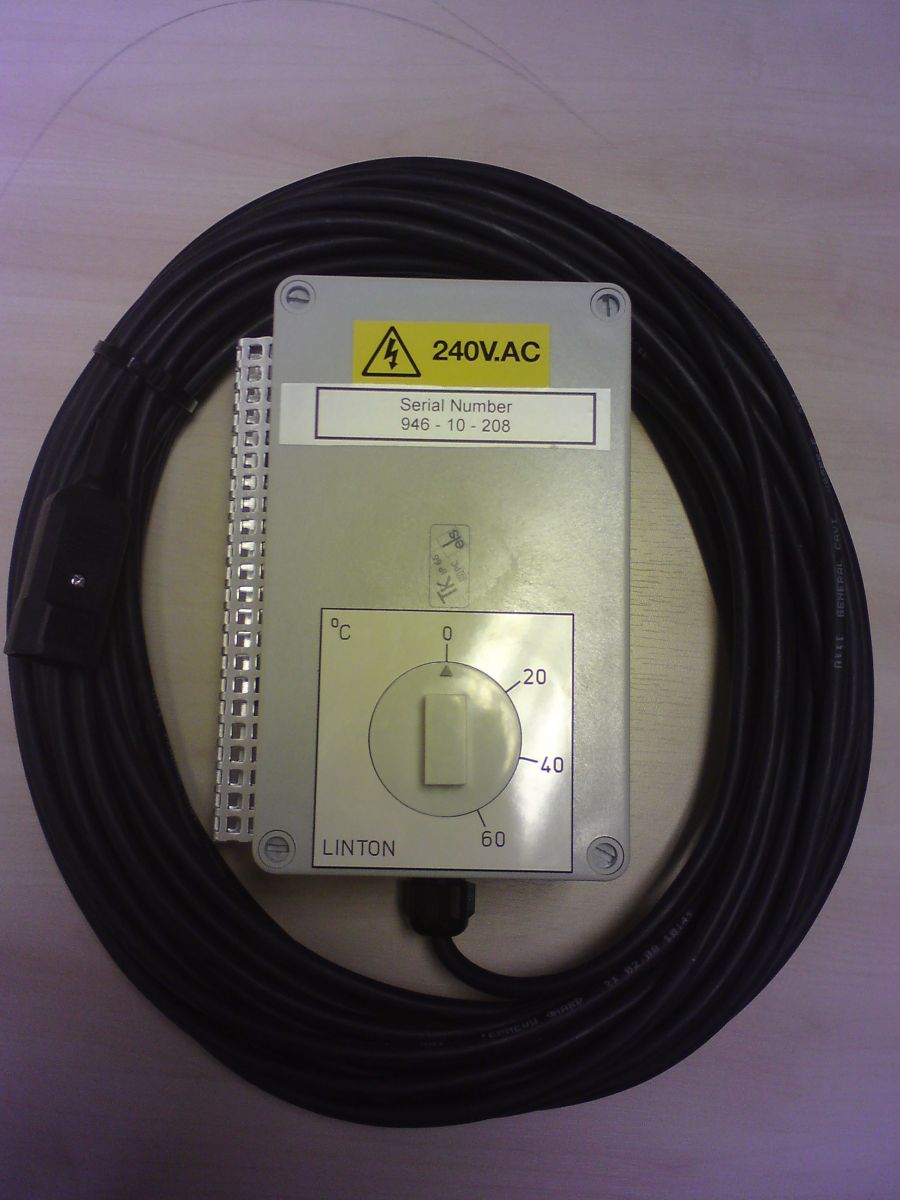

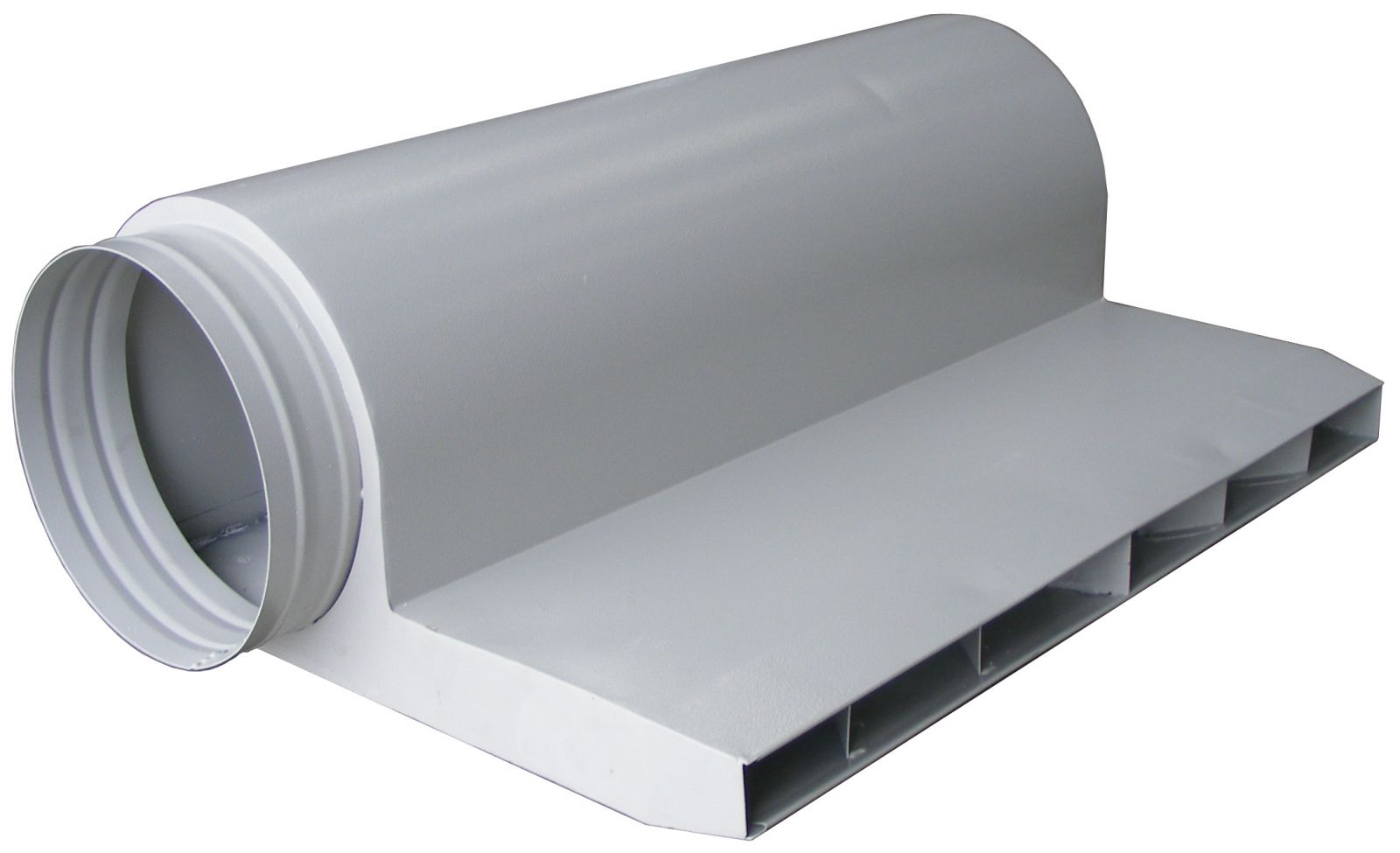

Omega also features a collection of associated products and appliances which include the following generic types : Ω Air delivery systems including Air Diffusers and Fish-Tails   Ω Balanced flue oil fired warm air Greenhouse heaters   Ω Trailer mounted packaged Aircraft Heaters   Ω "Black Water" Incineration systems   Ω Conventional thermostats and wireless (transmitter/receiver) thermostats   Ω Air conditioning interface docking stations   Ω Indirect fired process heat exchange modules from 100kW to 1000kW   Ω Skid mounted Plate Heat Exchange modules   Ω High temperature Fan Coil Units   Ω Portable Booster Pumps   Ω Acoustic Attenuators Please use the contact us facility if you have a specific application, product or project you would like to discuss with us.
